Introduction

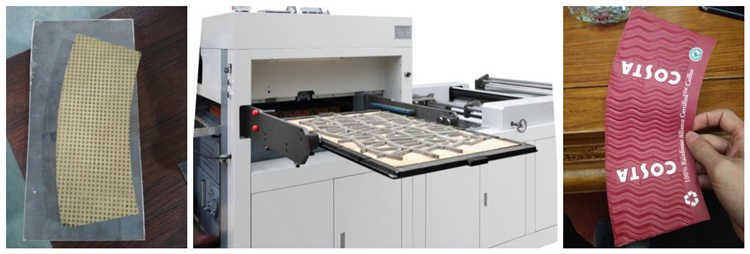

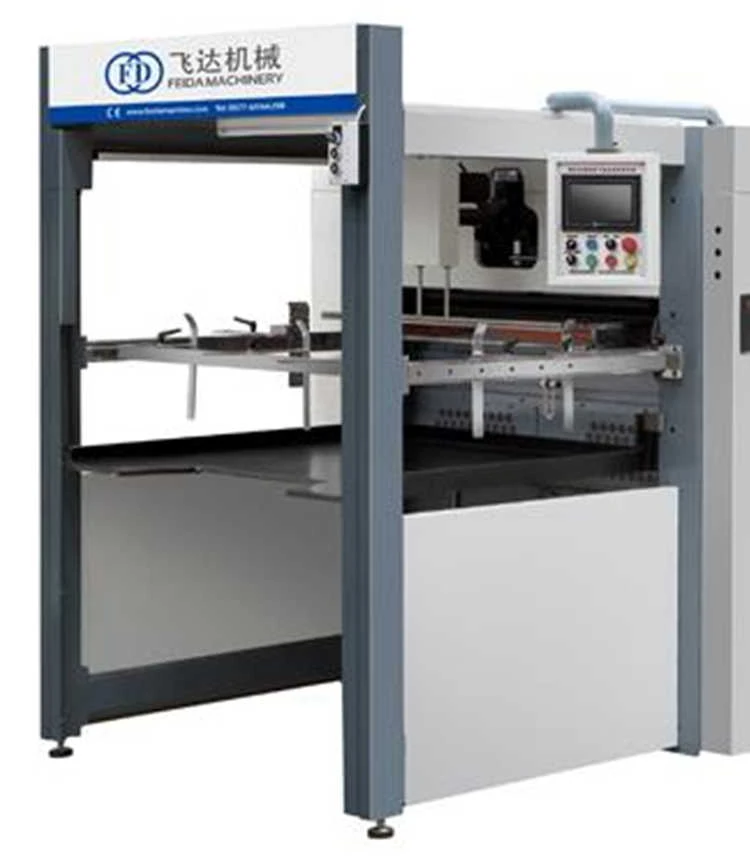

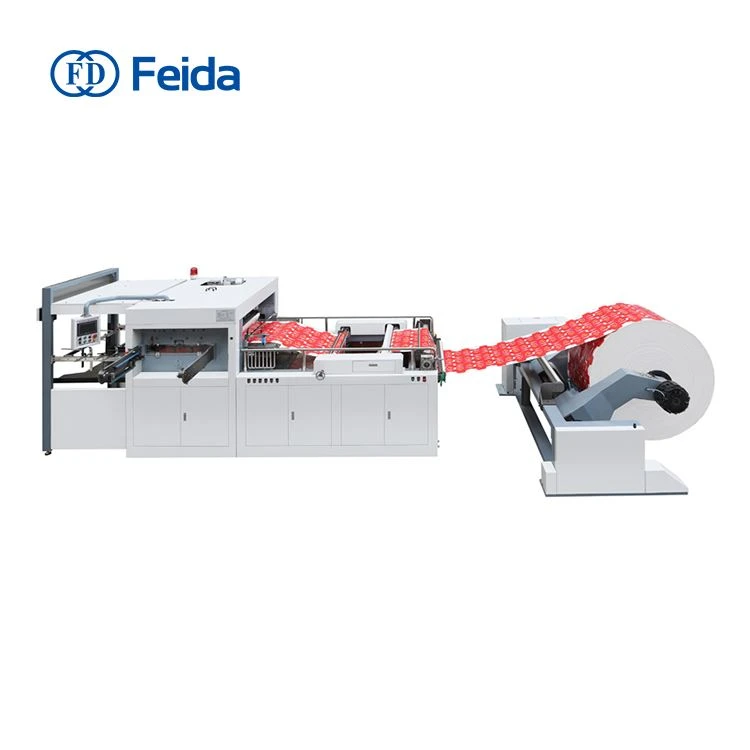

The Creasing Die Cutting Machine is an automatic equipment based on international advanced technology. It can make various materials into various shapes and is an important piece of equipment for packaging and processing. Because of its high stability, high safety, and high precision of finished products, it is widely used in the printing, packaging, and paper products industries. This machine can complete roll paper die-cutting and automatic paper collection at one time, so it can reduce labor investment and also save costs for manufacturers. In addition, indentation die-cutting processing plays an important role in improving the grade of processed products and the added value of product packaging. Its products are mainly paper containers such as cartons.
Features

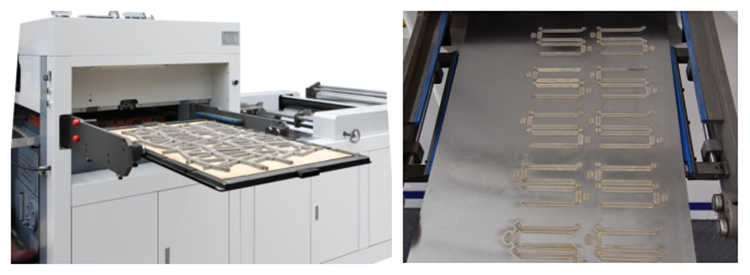

The Creasing Die Cutting Machine has the functions of single pressure cutting, continuous pressure cutting, and opening delay. The fuselage is made of high-quality materials, so it has better durability. The operation height is arranged reasonably, and the opening angle of the press frame is large, so it is more convenient. At the same time. The servo motor controls the paper feeding system, which perfectly solves the problem that the thick corrugated paper can not realize overlapping paper feeding. It can realize both overlapping paper feeding and single-sheet paper feeding. The scope of the application of paper is no longer limited. In addition, its die-cutting indentation quality should be very high, and the specifications and dimensions should meet the requirements, ensuring the quality of the carton.
Technical Specification
| Model | FD-1080X640 |
Max cutting area | 1050mmx6000mm |
Cutting precision | ±0.15mm |
Paper gram weight | 120-600g/㎡ |
Production capacity | 160-200times/min |
Air pressure requirement | 0.5Mpa |
Air pressure consumption | 0.25m³/min |
Max cutting pressure | 300T |
Weight | 10T |
Max roller diameter | 1600mm |
Total power | 12KW |
Dimension | 6500x2500x1800 |
Remarks:
1.Price Term: FOB ningbo/shanghai port,China
2)Payment term: TT (30% deposit, the balance70% before delivery) .
3) Delivery time: 90 working days after receiving the deposit
4) After sale service:
1.Spare parts guarantee for one year from the date of installation.
2.Send the technician for installation & training. Buyer bears the cost (round tickets,accommodation, and allowance of 100USD per day).
5)Certificate：CE,ISO
6）Mold：contains cutting mold and stripping mold
About us
Feida pays great attention to the living and working conditions of every member of our staff with its own foundation. Staff members are encouraged to develop their professional skills through various training classes conducted by our company. Feida also has incentive schemes in place to reward employees so that it can boost productivity.For each test that appears on the quality inspection sheet, we will inspect until the equipment meets each of our regulations before leaving the factory.

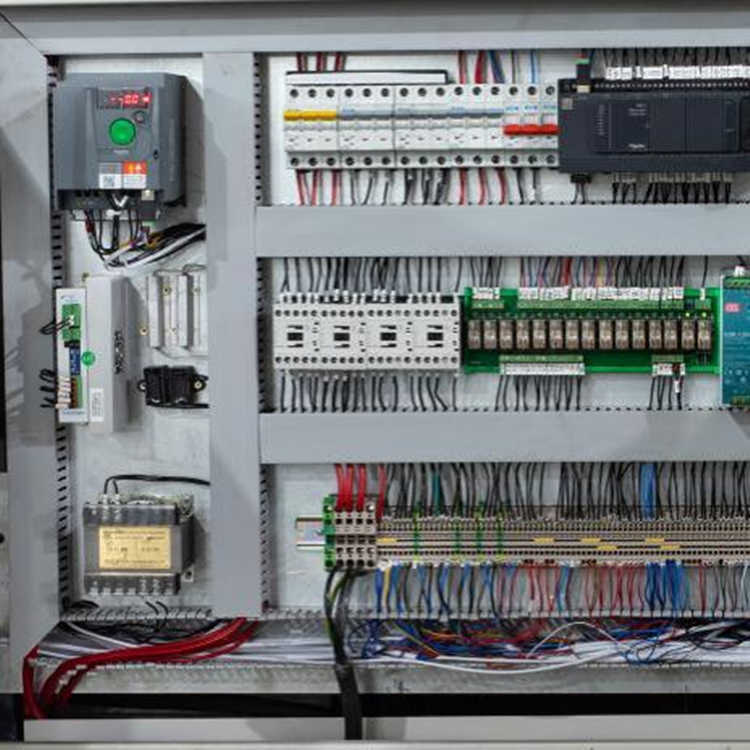

Electric Configuration
| Stepper motor | Schneider |
Pressure adjusting motor | Taiwan |
Servo driver | Schneider |
Color Sensor | Sick |
PLC | Schneider |
Frequency converter | Schneider |
All other electrical parts | Schneider |

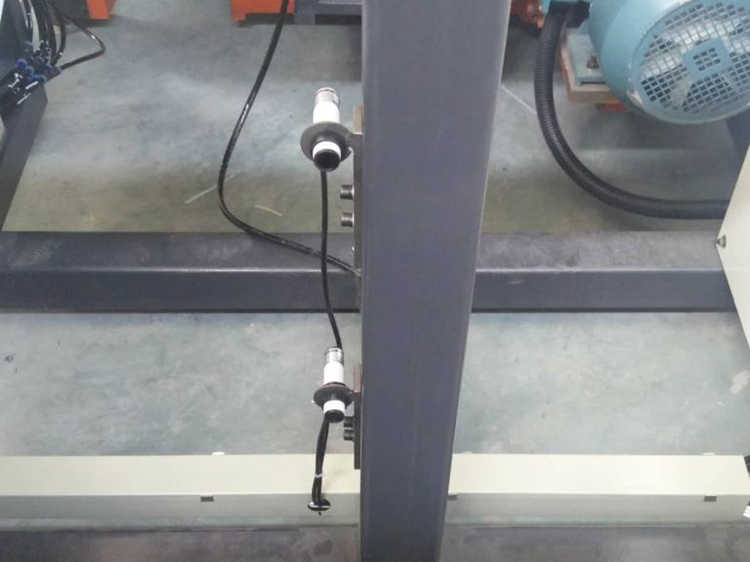

Photoelectric switch | Leuze |
Main air cylinder | AirTAC |
Solenoid valve and other parts | AirTAC |

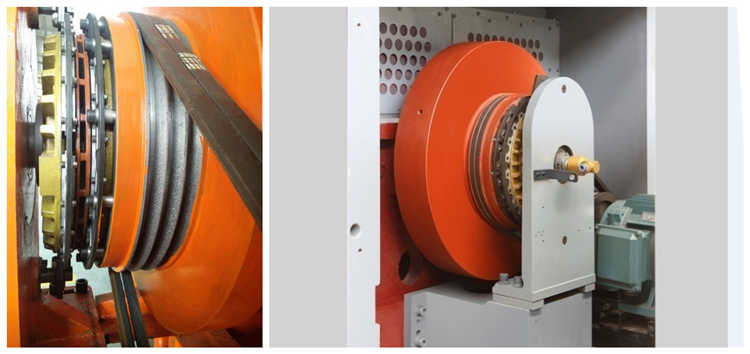

Pneumatic clutch | China |
Main bearings | Germany |
Process
The die-cutting process is the most commonly used process for packaging printed products. The creasing process is the use of crimping knives or crimping dies to press out the wire marks on the sheet metal through the action of pressure, or the use of rollers to bend and form the plate at a predetermined position.
The main process of die-cutting indentation is: adjusting the pressure → the upper version→ determining the rules→ pasting the substrate auxiliary materials→ trial pressure die-cutting→ formal die-cutting indentation→ cleaning the finished product→ winding or cutting into slices→ point packaging.
