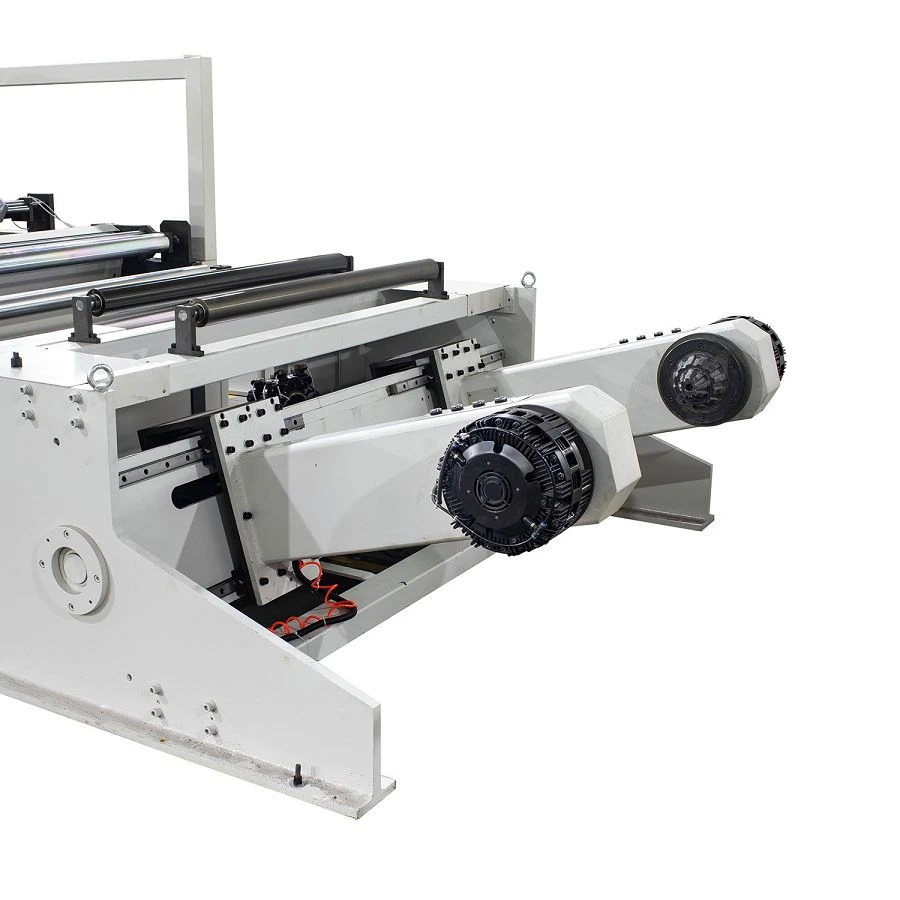

Paper Plate Cutting Machine

Paper Plate Cutting Machine

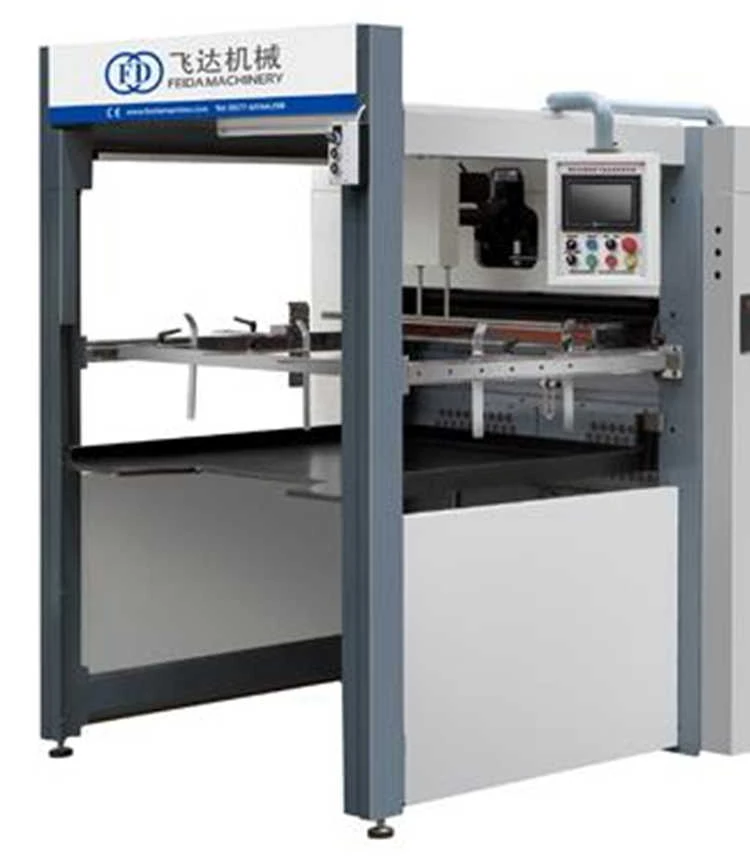

Paper plate cutting machine can die-cut according to the printed words and figures or simply die-cut without them. The coordination between stepping motor and photoelectric eye which can identify colors assures the perfectly fit of the die-cutting position and figures.
Glaoigh Linn
Cur síos

Description

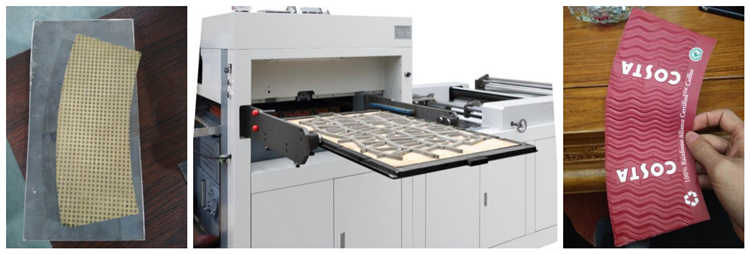

This paper plate cutting machine can cut the paper according to your product design and layout. The machine adopts digital control, so it can reduce manual operation, solve the cutting problem of special-shaped materials, and save labor costs. Cardboard, corrugated paper, honeycomb paper, and other flexible materials can be cut with it. In addition, the machine's waste edge treatment system and tool conversion system provide more possibilities for processing methods and improve production efficiency. High speed, high precision, and high reliability make it a product favored by customers and enable customers to maintain competitive advantages in the same industry.


Features

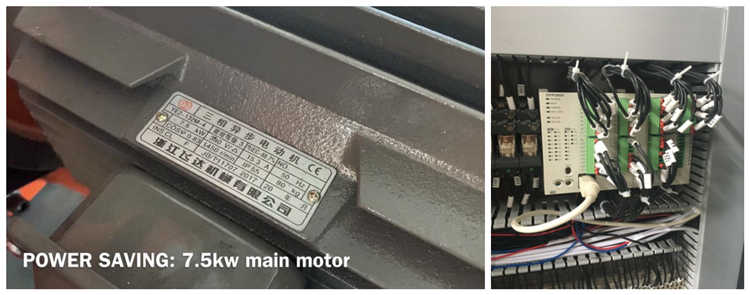

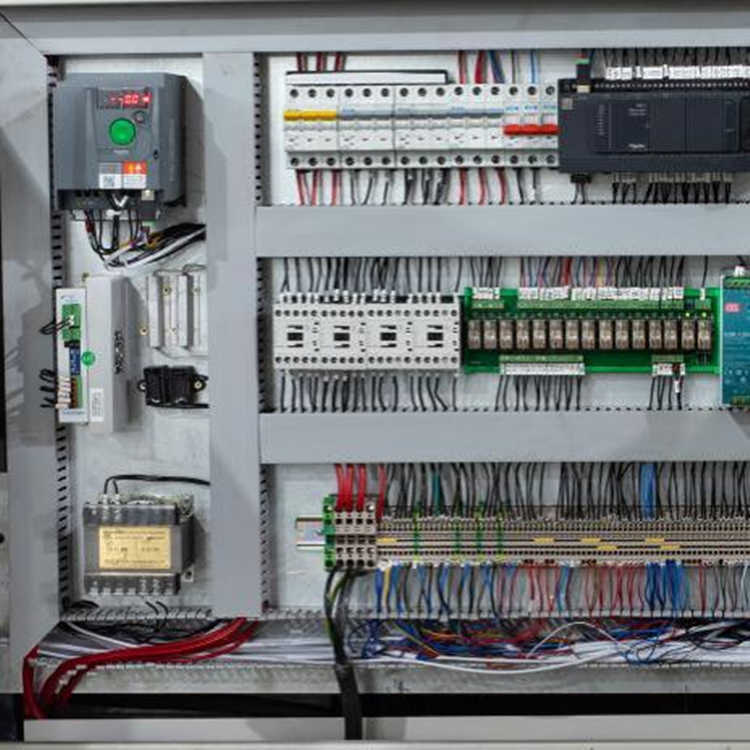

1. The frequency converter controls the main motor of the Paper Plate Cutting Machine, so it has high efficiency but low energy consumption.

2. The HD screen can display the data and status of the machine's operation, and all parameters can be set through the screen, which is very convenient.

3. When the machine breaks down, the safety system will automatically alarm and shut down to prevent accidents.

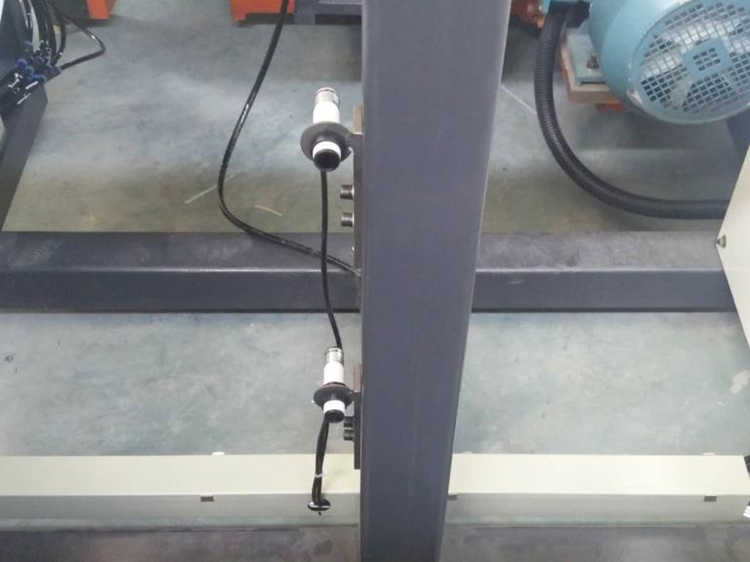

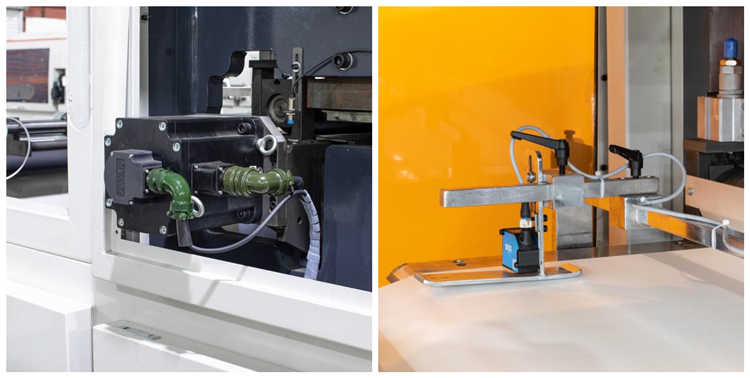

4. The photoelectric control system can fix and adjust the paper to the correct position, which is conducive to fine cutting.


Technical Specification

Model

FD970x640

Max cutting area

940mmx600mm

Cutting precision

±0.15mm

Paper gram weight

120-400g/㎡

Production capacity

160-200times/min

Air pressure requirement

0.5Mpa

Air pressure consumption

0.25m³/min

Max cutting pressure

180T

Weight

8T

Max roller diameter

1600mm

Total power

12KW

Dimension

6500x2200x1800


41

4

6

8

43


44

46

47

17

49


52

23

54

26

53


28


Q&A

Q: Is the marketing important to your business?

A: Yes, it is important to every business.


Q: How is the foreground of Paper Plate Making? And is starting a paper plate cutting machine business profitable?

A: There's no doubt that it's foreground prospect is very good. It has both urban and rural markets. People use these items mainly for social events, gatherings, marriages, outings, dessert shops, etc.
