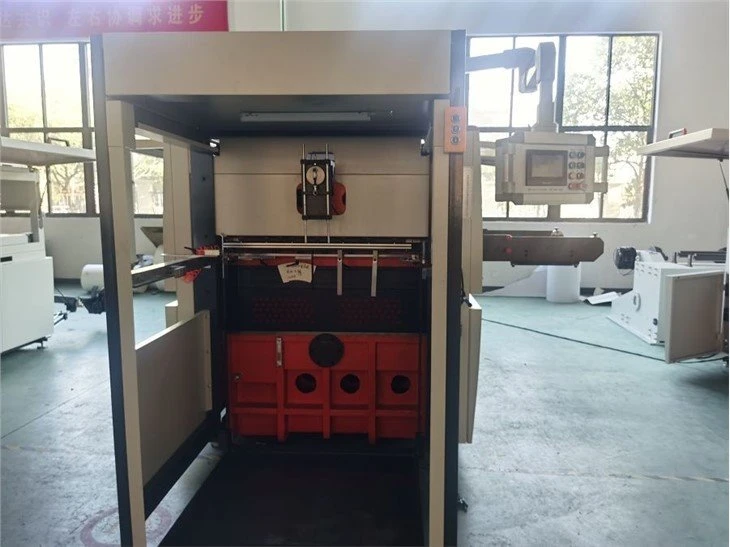

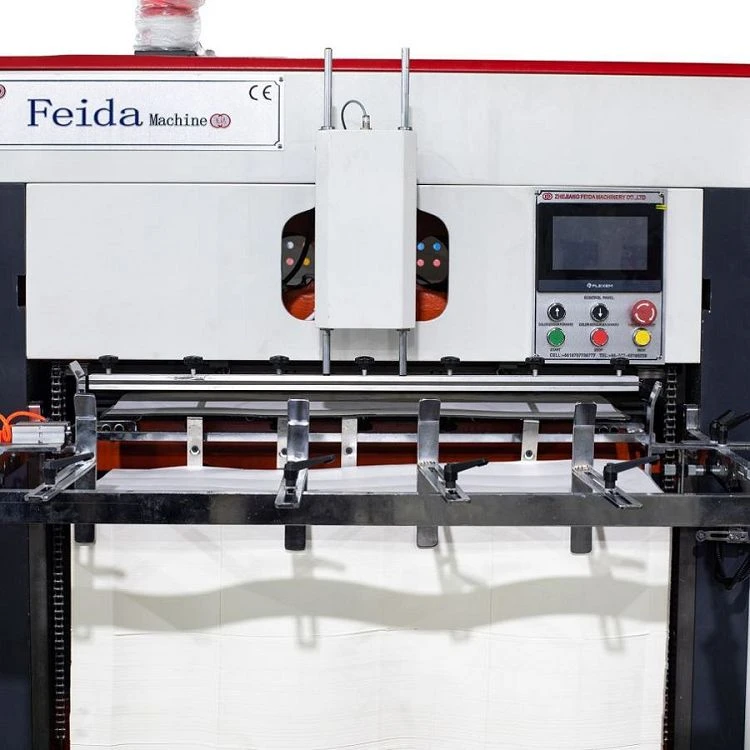

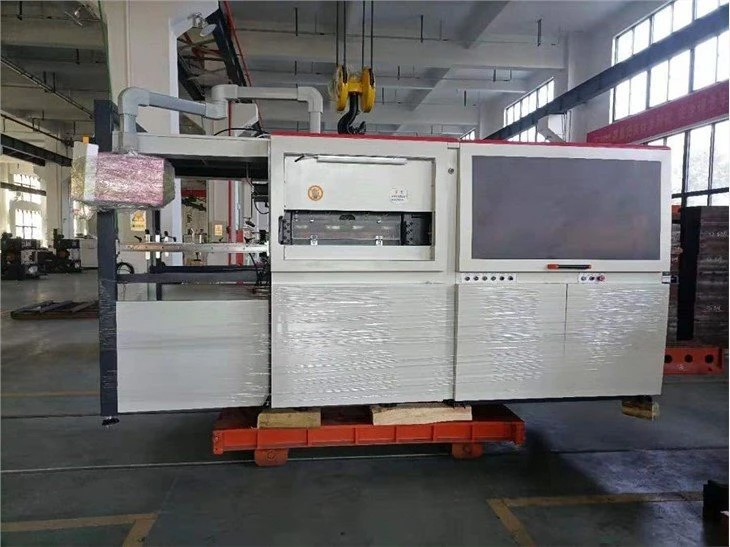

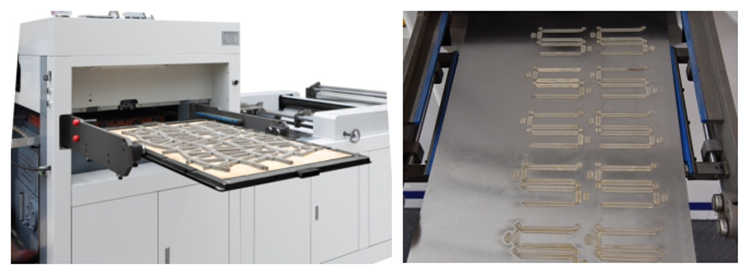

Paper plate wooden die cutting machine can provide strong and stable pressure, and it has the characteristics of high accuracy, low noise and stable operation. The base and main frame of the machine are made of high-strength cast iron, so they can provide good tensile strength, deformation resistance and fatigue resistance. As an important equipment for packaging processing and molding, it can exert certain pressure on the material to form a specific shape, and it can be used for paper materials. This machine can also make blank circle or products with indentation circle. No matter what you want, our professional staff can develop a solution for you.
Features

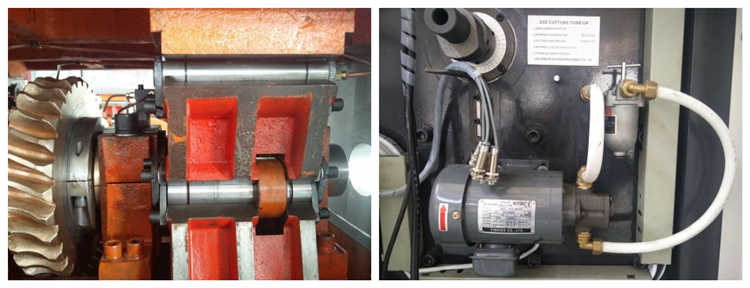

Paper plate wooden die cutting machine is mainly used for the die-cutting of some corresponding non-metallic materials, such as EVA, double-sided tape, electronic products, mobile phone rubber pads, etc. It can realize such operations as bronzing, laminating, automatic waste removal and die-cutting. The machine adopts a forced lubrication system to ensure the regular supply of main transmission oil and reduce friction, thus extending the service life of the machine. In practical applications, if the oil pressure is low, the machine will automatically stop to provide protection. In addition, we have added a filter in the oil circuit to remove the oil and a flow switch to monitor the oil shortage.
Specification
Model | FD970x640 |
Max cutting area | 940mmx600mm |
Cutting precision | ±0.15mm |
Paper gram weight | 120-600g/㎡ |
Production capacity | 160-200times/min |
Air pressure requirement | 0.5Mpa |
Air pressure consumption | 0.25m³/min |
Max cutting pressure | 300T |
Weight | 7T |
Max roller diameter | 1600mm |
Total power | 12KW |
Dimension mm | 4500x2200x1800 |

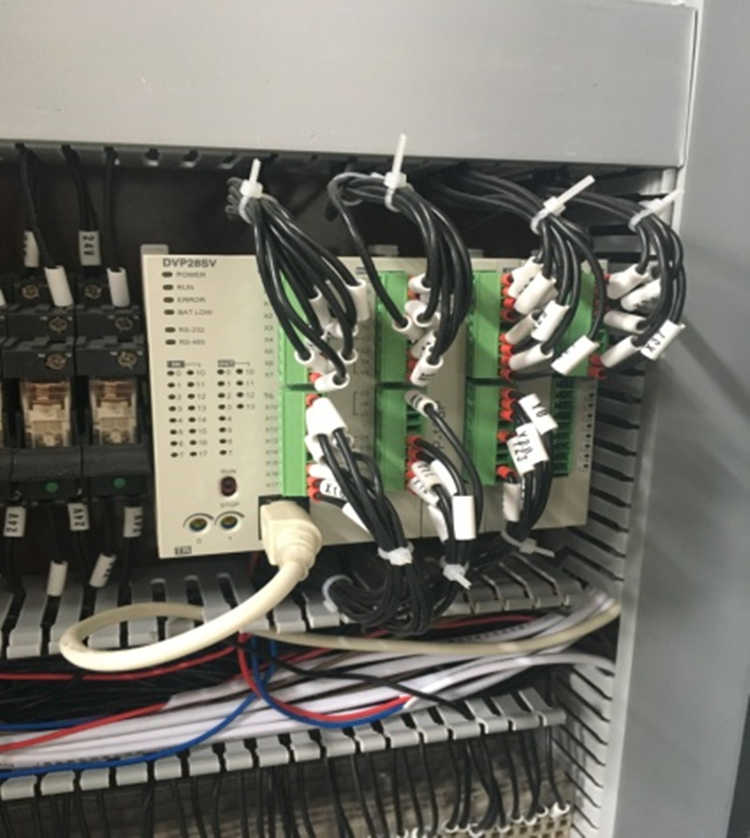

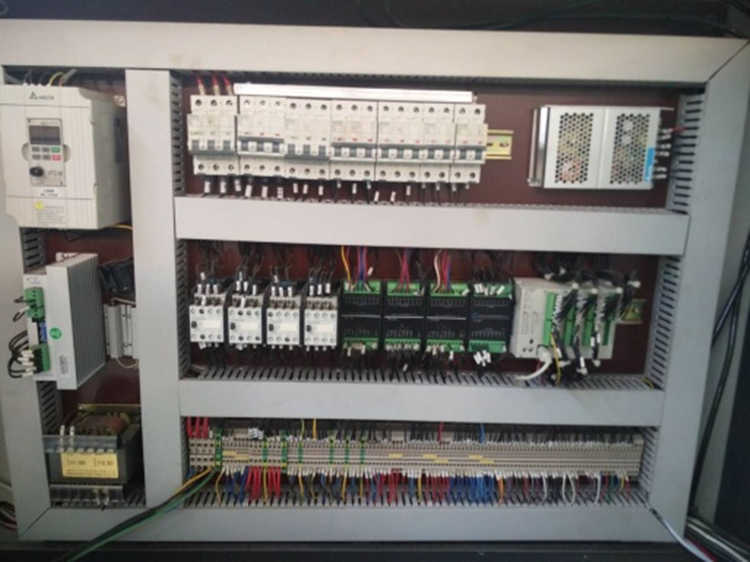

Electrical cabinet
Electrical configuration
| Stepper motor | Schneider |
Pressure adjusting motor | Taiwan |
Servo driver | Schneider |

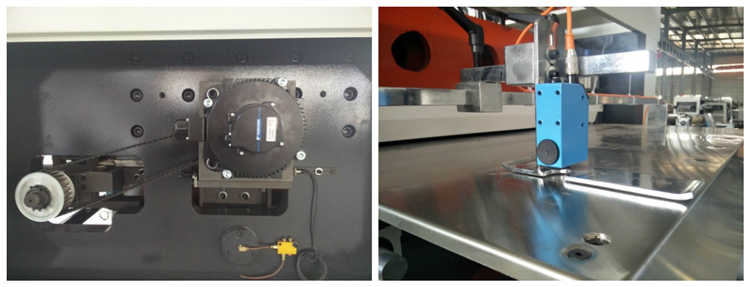

Color Sensor | Sick |
PLC | Schneider |
Frequency converter | Schneider |
All other electrical parts | Schneider |

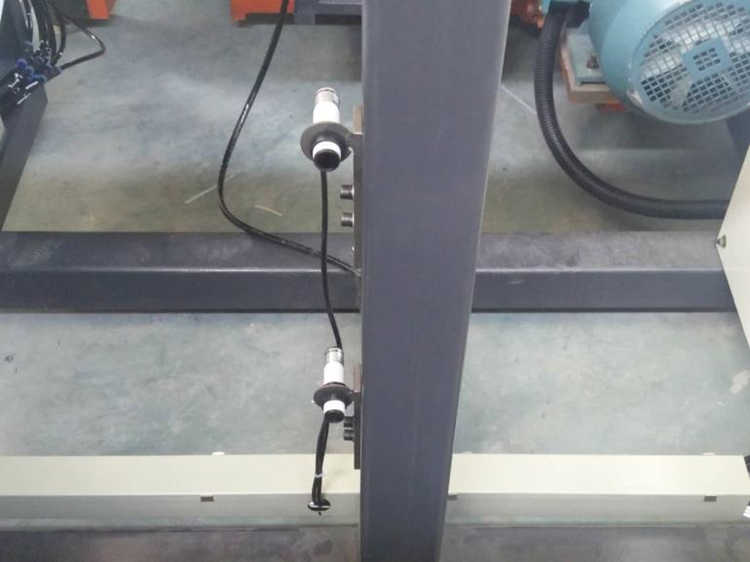

Photoelectric switch | Leuze |
Main air cylinder | AirTAC |
Solenoid valve and other parts | AirTAC |

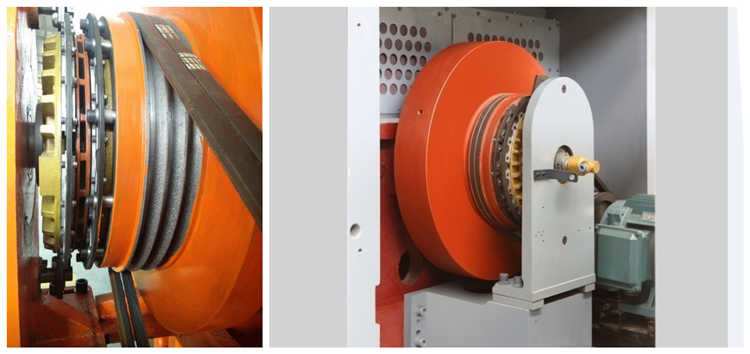

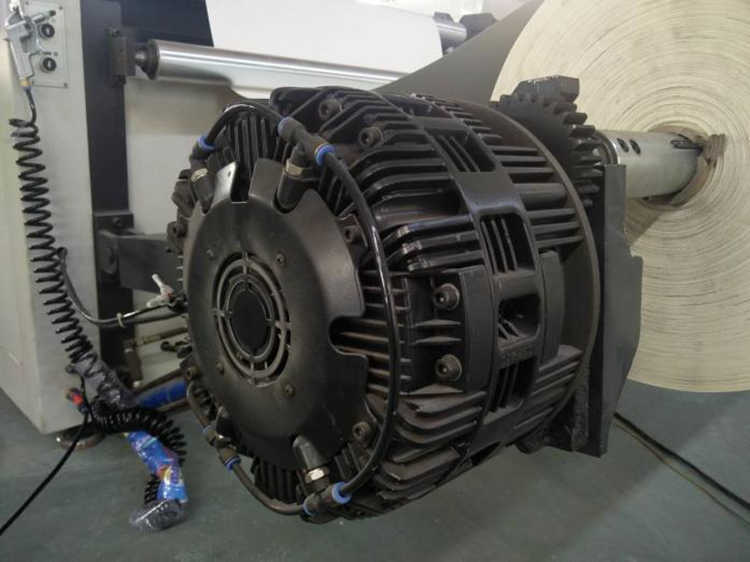

Pneumatic clutch | China |
Main bearings | Germany |
Advantages of Die Cutting
Traditional die cutting does come with many benefits, including:
1.Die-cutting means less material is wasted around the shape than other cutting methods, which is obviously not only cost-effective, but also better for the environment.
2.Requiring only one machine, the process is often cost-effective and efficient in terms of the time required
Die cutters can form shapes in one punch, so can make the same shape very quickly - even hand die cutters can make shapes faster than any other method.
